CG-786

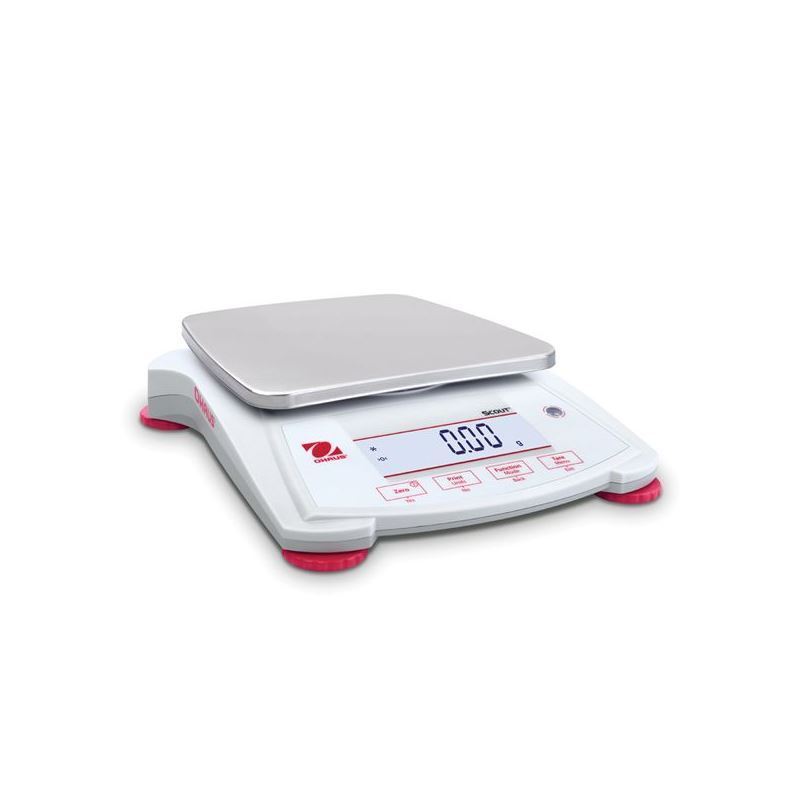

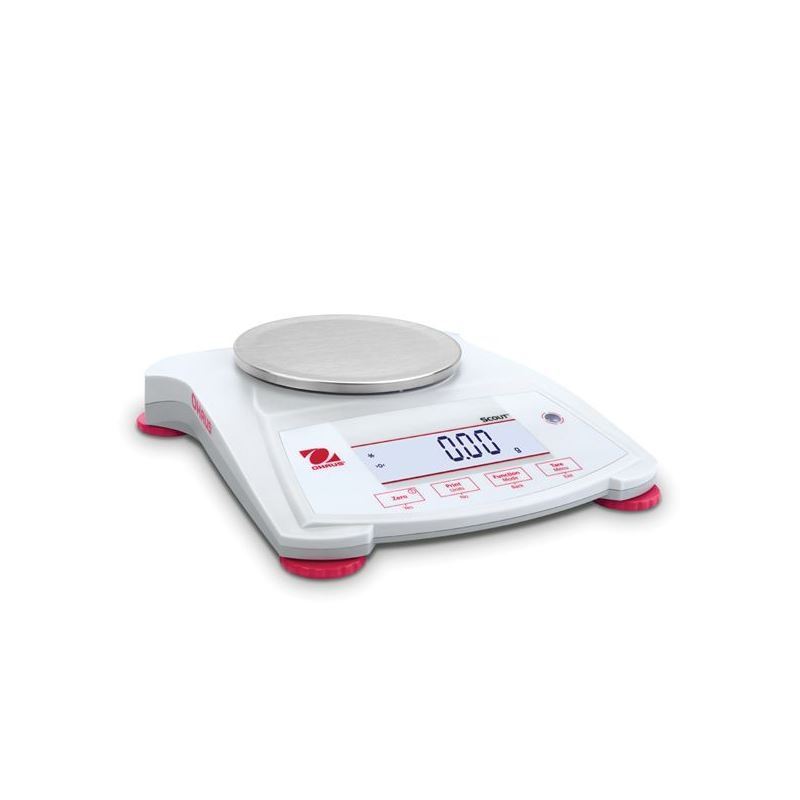

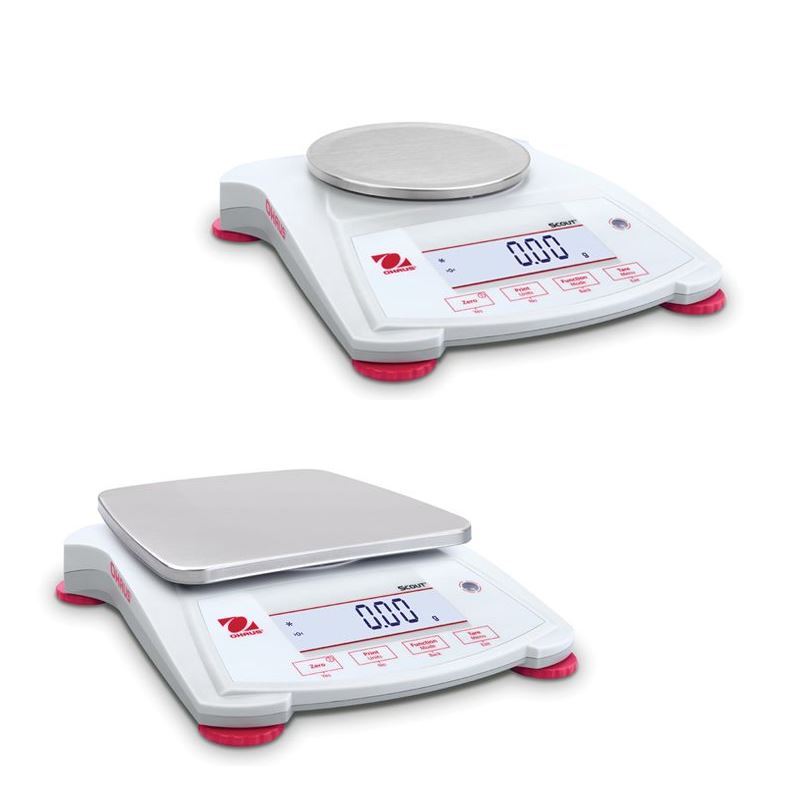

PORTABLE PRECISION BALANCE, SCOUT®, READABILITY 0.01 G, OHAUS

Precision Balances

Ideal for laboratory and industrial applications, the OHAUS Scout comes in a slim, stackable design with large backlit LCD. Features include superior overload protection, multiple weighing units and application modes. Geared for high performance in your facility with fast stabilization time and high-resolution weighing results, these portable balances set a new standard in laboratory and industrial weighing.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Totalization, Display Hold

Display

Liquid crystal display (LCD) with backlight

Operation

AC Adapter (Included) or 4 AA Batteries (Not included)

Communication

RS232, USB Host, USB Device, Ethernet or Bluetooth® (available as an accessory)

Construction

ABS housing, stainless steel pan, ABS draft-shield (1mg models only), weigh below hook, transportation lock, manual calibration lock switch, security slot, adjustable leveling feet, illuminated up-front level indicator

Design Features

Stability indicator, stackable design with optional storage cover (excluding 1mg models), mechanical and software overload/underload protection, low battery indicator, auto shut-off, auto tare, span calibration mass included on models up to 620g capacity

Item Number	Item Description	PQ	Price	Qty Avail	Quantity

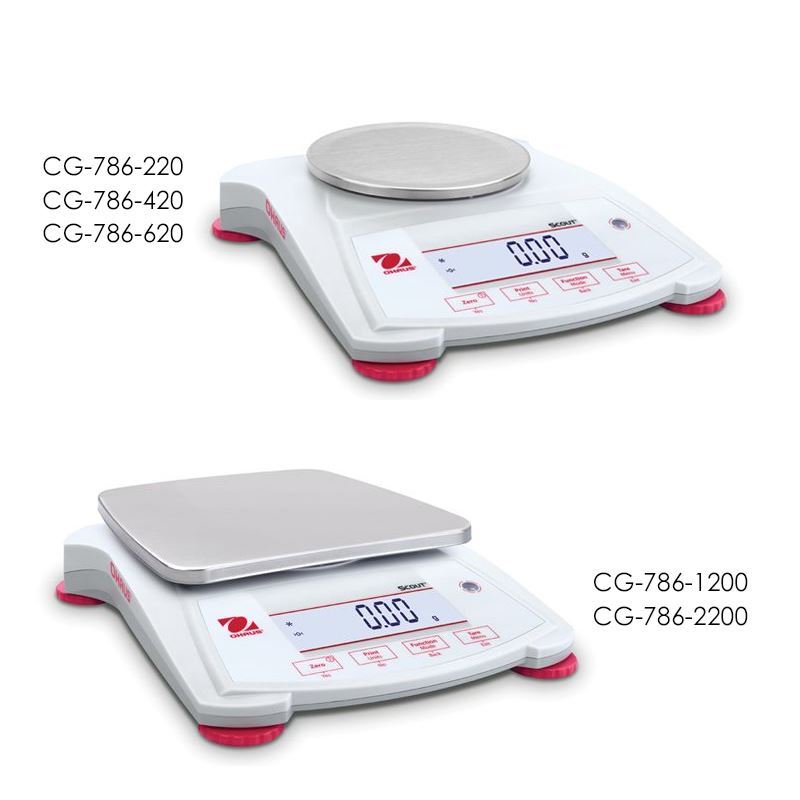

CG-786-220	Balance, Precision Portable Scout® LCD Display, Max Capacity 220g, Readability 0.01 g, Pan Size 120mm, OHAUS	EACH	^✱ $723.00	Call for Availability	Add to Favorites
CG-786-420	Balance, Precision Portable Scout® LCD Display, Max Capacity 420g, Readability 0.01 g, Pan Size 120mm, OHAUS	EACH	^✱ $1,015.00	Call for Availability	Add to Favorites
CG-786-620	Balance, Precision Portable Scout® LCD Display, Max Capacity 620g, Readability 0.01 g, Pan Size 120mm, OHAUS	EACH	^✱ $1,190.00	Call for Availability	Add to Favorites
CG-786-1200	Balance, Precision Portable Scout® LCD Display, Max Capacity 1200g, Readability 0.01 g, Pan Size 140 x 170mm, OHAUS	EACH	^✱ $1,357.00	Call for Availability	Add to Favorites
CG-786-2200	Balance, Precision Portable Scout® LCD Display, Max Capacity 2200 g, Readability 0.01 g, Pan Size 140 x 170mm, OHAUS	EACH	^✱ $1,526.00	Call for Availability	Add to Favorites

✱ Chemistry Equipment and Hardware Product line

Replacement Parts
Specifications/Manuals
Suggested Products

	CG-786-220	CG-786-420	CG-786-620	CG-786-1200	CG-786-2200
Maximum Capacity	220 g	420 g	620 g	1,200 g	2,200 g
Readability	0.01 g	0.01 g	0.01 g	0.01 g	0.01 g
Pan Size	4.7 in (120 mm)	4.7 in (120 mm)	4.7 in (120 mm)	5.5 in x 6.7 in (140 mm x 170 mm)	5.5 in x 6.7 in (140 mm x 170 mm)
Battery Life	120 Hours with Disposable Batteries	80 Hours with Disposable Batteries	80 Hours with Disposable Batteries	80 Hours with Disposable Batteries	80 Hours with Disposable Batteries
Communication	RS232 (Available as an Accessory); USB Host (Available as an Accessory); USB Device (Available as an Accessory); Ethernet (Available as an Accessory); Bluetooth (Available as an Accessory)	RS232 (Available as an Accessory); USB Host (Available as an Accessory); USB Device (Available as an Accessory); Ethernet (Available as an Accessory); Bluetooth (Available as an Accessory)	RS232 (Available as an Accessory); USB Host (Available as an Accessory); USB Device (Available as an Accessory); Ethernet (Available as an Accessory); Bluetooth (Available as an Accessory)	RS232 (Available as an Accessory); USB Host (Available as an Accessory); USB Device (Available as an Accessory); Ethernet (Available as an Accessory); Bluetooth (Available as an Accessory)	RS232 (Available as an Accessory); USB Host (Available as an Accessory); USB Device (Available as an Accessory); Ethernet (Available as an Accessory); Bluetooth (Available as an Accessory)
Auxiliary Display Model	Available as an Accessory	Available as an Accessory	Available as an Accessory	Available as an Accessory	Available as an Accessory
Dimensions	2.1 in x 8.8 in x 8 in (54 mm x 224 mm x 202 mm) (HxLxW)	2.1 in x 8.8 in x 8 in (54 mm x 224 mm x 202 mm) (HxLxW)	2.1 in x 8.8 in x 8 in (54 mm x 224 mm x 202 mm) (HxLxW)	2.1 in x 8.8 in x 8 in (54 mm x 224 mm x 202 mm) (HxLxW)	2.1 in x 8.8 in x 8 in (54 mm x 224 mm x 202 mm) (HxLxW)
Display	Large backlit LCD	Large backlit LCD	Large backlit LCD	Large backlit LCD	Large backlit LCD
In-use cover	Available as an Accessory	Available as an Accessory	Available as an Accessory	Available as an Accessory	Available as an Accessory
Legal for Trade	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable
Linearity ±	0.01 g	0.01 g	0.02 g	0.03 g	0.03 g
Net Weight	2.2 lb (1 kg)	2.2 lb (1 kg)	2.2 lb (1 kg)	2.2 lb (1 kg)	2.2 lb (1 kg)
Pan Construction	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Power	AC Adapter (Included); 4 AA (LR6) Batteries (Not Included)	AC Adapter (Included); 4 AA (LR6) Batteries (Not Included)	AC Adapter (Included); 4 AA (LR6) Batteries (Not Included)	AC Adapter (Included); 4 AA (LR6) Batteries (Not Included)	AC Adapter (Included); 4 AA (LR6) Batteries (Not Included)
Repeatability (typical)	0.01 g	0.01 g	0.01 g	0.02 g	0.02 g
Stabilization Time	1 s	1 s	1 s	1.5 s	1.5 s
Tare Range	To capacity by subtraction	To capacity by subtraction	To capacity by subtraction	To capacity by subtraction	To capacity by subtraction
Transportation Case	Available as an Accessory	Available as an Accessory	Available as an Accessory	Available as an Accessory	Available as an Accessory
Units of Measurement	Carat; Grain; Gram; Newton; Ounce; Ounce Troy; Pennyweight; Custom	Carat; Grain; Gram; Newton; Ounce; Ounce Troy; Pennyweight; Custom	Carat; Grain; Gram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce; Custom	Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce; Custom	Carat; Grain; Gram; Kilogram; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Pound:Ounce; Custom
Working Environment	50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)	50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)	50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)	50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)	50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)
Auxiliary Display Model	Available as an Accessory	Available as an Accessory	Available as an Accessory	Available as an Accessory	Available as an Accessory
